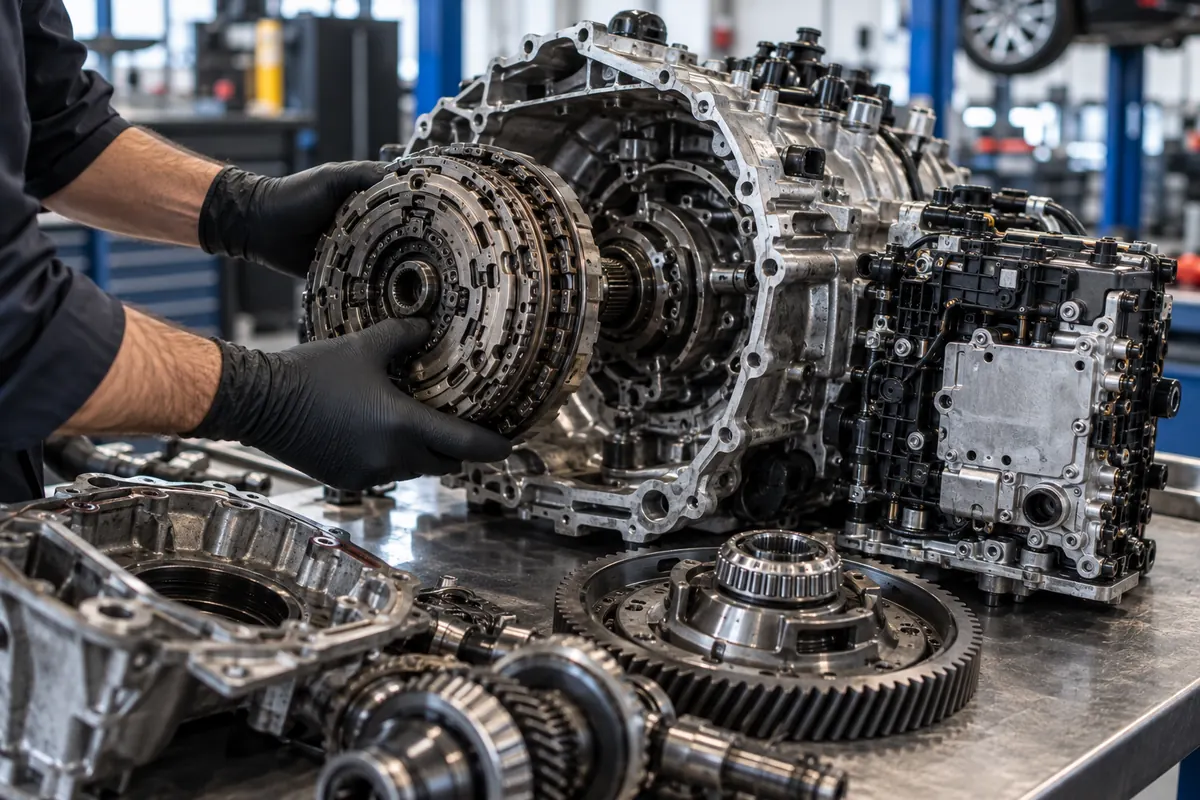

DSG DQ200 Jerking: Mechatronics, Clutches and Diagnostics
The DSG DQ200 is a seven-speed dual-clutch gearbox with dry clutches, used in selected Volkswagen Group cars. Jerking when pulling away, delayed gear engagement or a flashing gear indicator can point to a problem with the clutches, the mechatronic unit or the control system. The cause has to be confirmed by diagnostics, because similar symptoms can have different sources.
If your DSG DQ200 jerks badly, loses drive, will not select a gear or goes into limp mode, stop the car safely and do not force it to keep driving.
Which cars have the DSG DQ200?
The DQ200 is a seven-speed dual-clutch transmission typically used in VAG Group cars with engines of suitable torque. You can find it in selected versions of the Volkswagen Golf, Polo, Jetta, Passat, Škoda Octavia, SEAT Leon and Audi A1 and A3, among others.
The gearbox comes in various versions and model years, so it should be identified from the data of the specific vehicle. Not every seven-speed DSG is a DQ200.
The DQ200 uses two dry clutches and a mechatronic unit that controls gear changes. Its design differs from wet-clutch DSG gearboxes, which matters for diagnostics, fluid servicing and repair.
DSG DQ200 jerking – the most common symptoms
- Jerking when pulling away forwards or in reverse.
- Shuddering when parking and in stop-start traffic.
- Delayed engagement of D or R.
- Uneven shifts into certain gears.
- A flashing gear indicator or a gearbox fault message.
- Switching into limp mode.
- Intermittent inability to pull away.
The most typical problems occur when pulling away and moving at low speed. Not every single jolt means the mechatronic unit is damaged, though.
How the gearbox behaves is also affected by the condition of the clutches, engine management and operating conditions. Symptoms have to be assessed in the context of the specific car.
Why does the DSG DQ200 jerk, and what is the mechatronic unit?
| Possible cause | Additional symptoms | Urgency |
|---|---|---|
| Worn dry clutches | Shuddering and jerking when pulling away | High |
| DQ200 mechatronic unit fault | No gears, fault codes, limp mode | High |
| Control pressure problem | Delayed or impossible gear engagement | High |
| Incorrect adaptation | Uneven gear changes | Diagnostics |
| Sensor or wiring fault | Intermittent control unit fault codes | High |
| Engine running problem | Jerking even outside gear changes | Diagnostics |
The mechatronic unit is an assembly of electronic and hydraulic components that controls how the gearbox works. A fault in it can cause problems with gear selection, control pressure or clutch operation.
Dry clutches wear with use, especially with frequent pulling away and low-speed driving. Their condition can affect how smoothly torque is transmitted.
Jerking can also be caused by incorrect adaptation values, sensor faults or engine running problems. An adaptation alone will not fix a mechanically worn clutch.
What should you do if the DSG DQ200 goes into limp mode?
- 1Note whether the jerking happens when pulling away, reversing or changing into a particular gear.
- 2Check whether a gearbox fault message or flashing gear indicators have appeared.
- 3If the gearbox loses drive or will not select a gear, stop the car safely.
- 4Do not keep driving if the car jerks badly or the drive behaves unpredictably.
- 5Book gearbox diagnostics.
- 6Before the repair, approve the estimate and the parts needed.
Do not keep moving the selector back and forth or accelerate hard to try to force a proper gear change. This can put more strain on damaged components.
Note whether the symptoms occur with a cold or a warm gearbox. It also helps to establish whether the problem affects pulling away, reversing or specific gears.
How we diagnose the DSG DQ200 at Pulsecar
Computer diagnostics costs 100 zł. We read the available gearbox control unit fault codes and review the parameters related to the clutches and the mechatronic unit, where the car provides the relevant data.
Depending on the symptoms, additional checks of the wiring, control components and mechanical condition may be needed. A damaged mechatronic unit should not be diagnosed on the basis of jerking alone.
If clutch wear is confirmed, the replacement includes a suitable clutch kit and the required fitting parts. For the mechatronic unit, repair or replacement depends on the type of fault.
After work on the control components, the appropriate basic settings and adaptation procedures may need to be carried out according to the gearbox requirements.
How much does a DSG DQ200 repair cost?
Computer diagnostics at Pulsecar costs 100 zł. Repair or replacement of the DQ200 mechatronic unit, clutches and other gearbox parts is priced after diagnosis.
The work for an automatic gearbox oil change costs from 400 zł, but the DQ200 has a specific design, and its servicing should not be equated with an ATF change in a conventional automatic. The fluid servicing required depends on the specific version and the manufacturer's recommendations.
Details on gearbox oil are on our automatic transmission fluid change page. An oil change will not fix worn dry clutches or a damaged mechatronic unit.
To reduce wear, avoid holding the car on a hill with the accelerator for long periods and act on the first signs of abnormal operation. Before the repair, we give you an estimate to approve, and the work is covered by a 6-month warranty. You can choose a slot using online booking.
